Our lights are brighter. Each light bar has more than 100 white and yellow light leds, and there is no dark area.
|
|
|
|
|---|---|---|
Sequential turn signal light 01Yellow light 1th step |
Sequential turn signal light 02Yellow light 2th step |
Sequential turn signal light 03Yellow light 3th step |
Customer said:
'This product didnt have any reviews, but I thought I'd give it a try as I like that its slim ne how the light beam comes from the side vs the top. I was initially going to install it inside my headlight, but my headlight eyebrow is attached to both my height and turn signal lens and I was concerned it might break trying to remove it. I went with the other option which this product also recommend which is to install it between the headlight housing and the hood. It actually fit really good and you dont notice it when close up to the car when light is off. The light is bright e ough that it's still visible during day light and the turn signal light runs across vs illuminating all at once, so you will want to check how you install it as they are packaged as left and right due to the turn signal motion. You want it to run towards the side you are turning.'
|
|
|
|
|---|---|---|

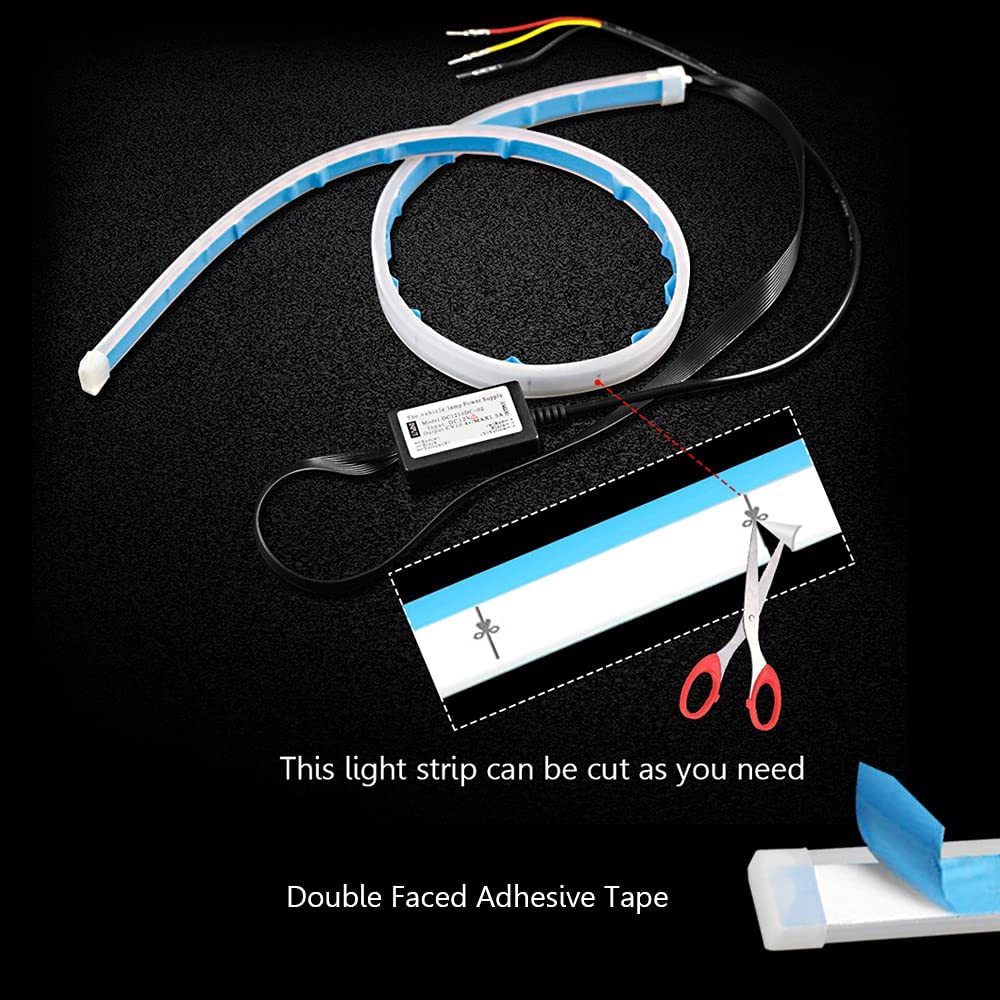

Can be cut as you needMeasure the size before installation, and then cut the appropriate size. Note.: Re-attach the plug with glue. |
Installation suggestions from my customerInstall and wiring notes: I decided to use and installed a 'fuse tap - 10 amps max' (see pic 2) on to my existing ACC fuse. I then connected the fuse tap red wire to to 18 gauge red primary wire that was run through the firewall into the engine area, ran along one side of the engine area, long enough to reach both headlights. I used velcro to keep the wires neat and out of the way. Both LED light wires (red) were spliced/soldered to this red primary wire. Note that each light is around 1amp, so a very fractional amount of amperage needed. The LED light wires (black) were spliced/soldered to 18 gauge black-colored primary wire and ran to the negative battery cable frame bolt and connected to the bolt with circular terminals. The LED light wires (yellow) were spliced/soldered to the turn signal light positive cable, to allow for the synchronized turn flashes. |

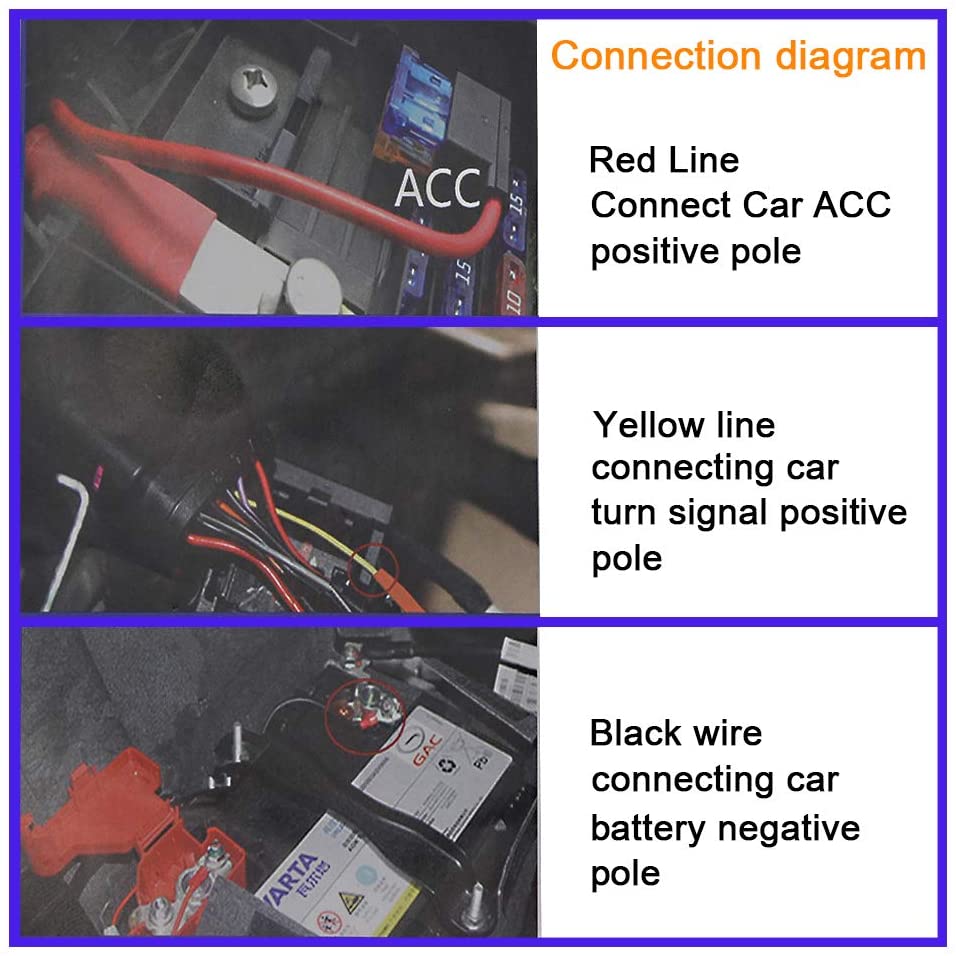

3 wires connction show1,Red line to ACC + 2,Yellow line to turn signal + 3,Black line to battery - |

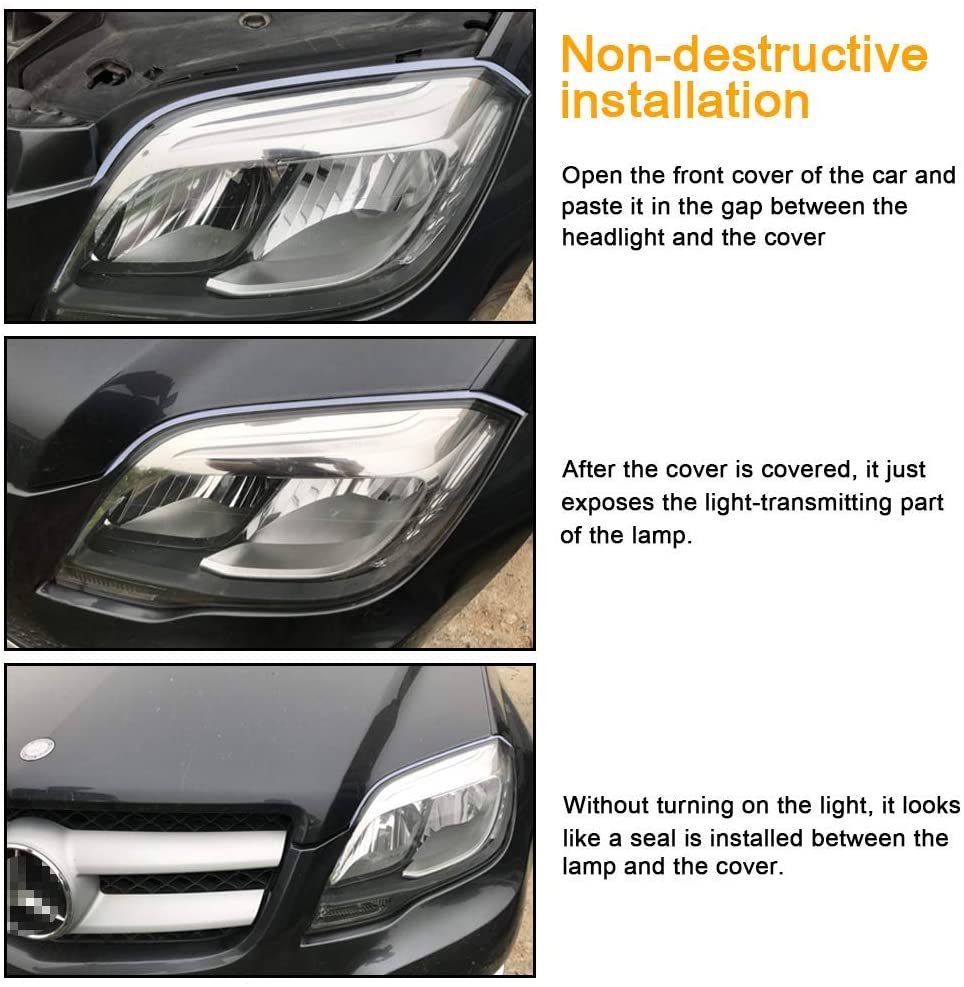

Wipe the surface with a clean cloth, tear off the back sticker and install it on the surface of the car headlight.
If necessary, you can use glue to assist the installation, which is more reliable.
