Note:The running light was not steady on it was like animated (Scanning from middle to two side and is red)

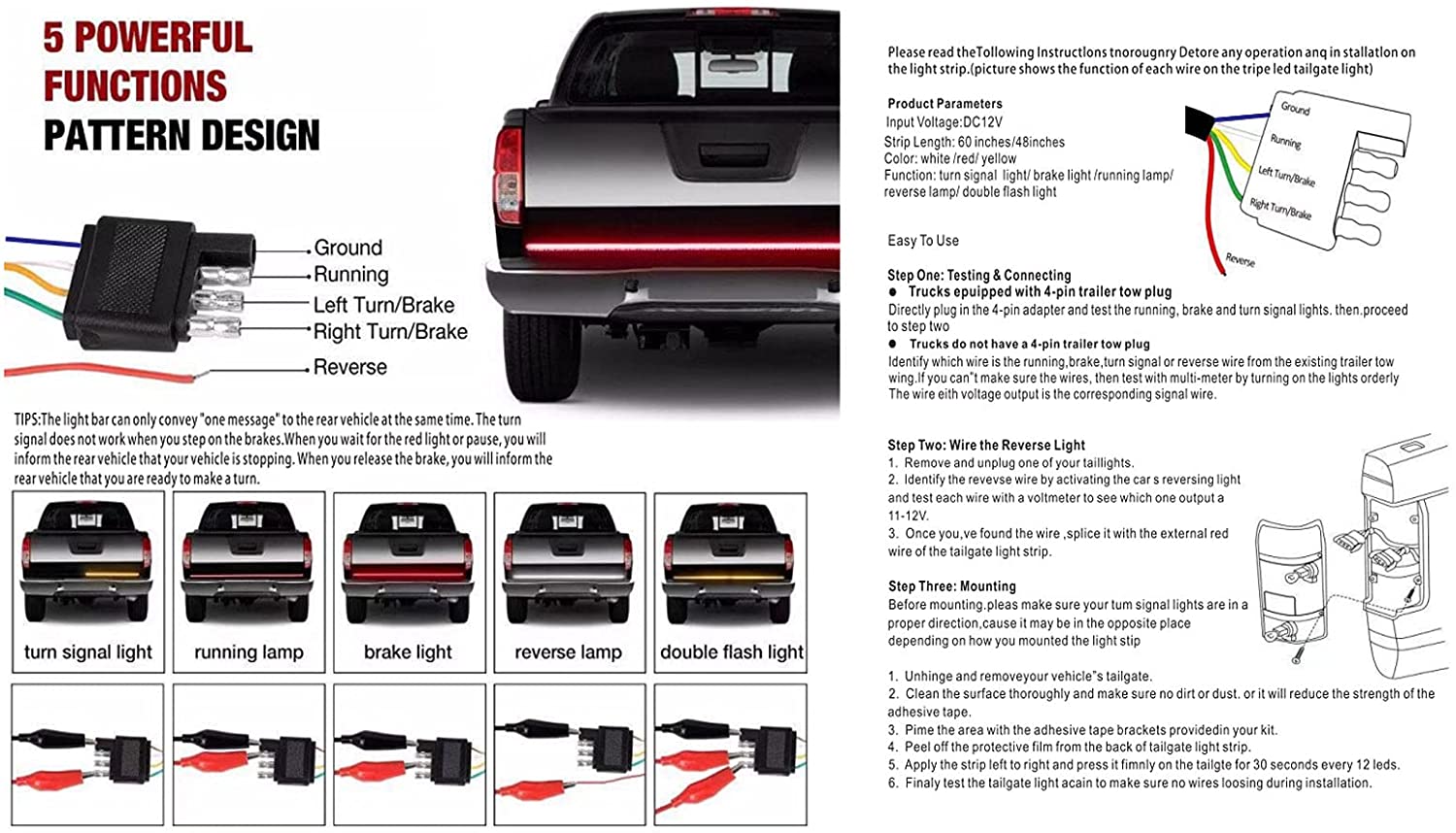

Flat 4 Pin Connector Diagram:

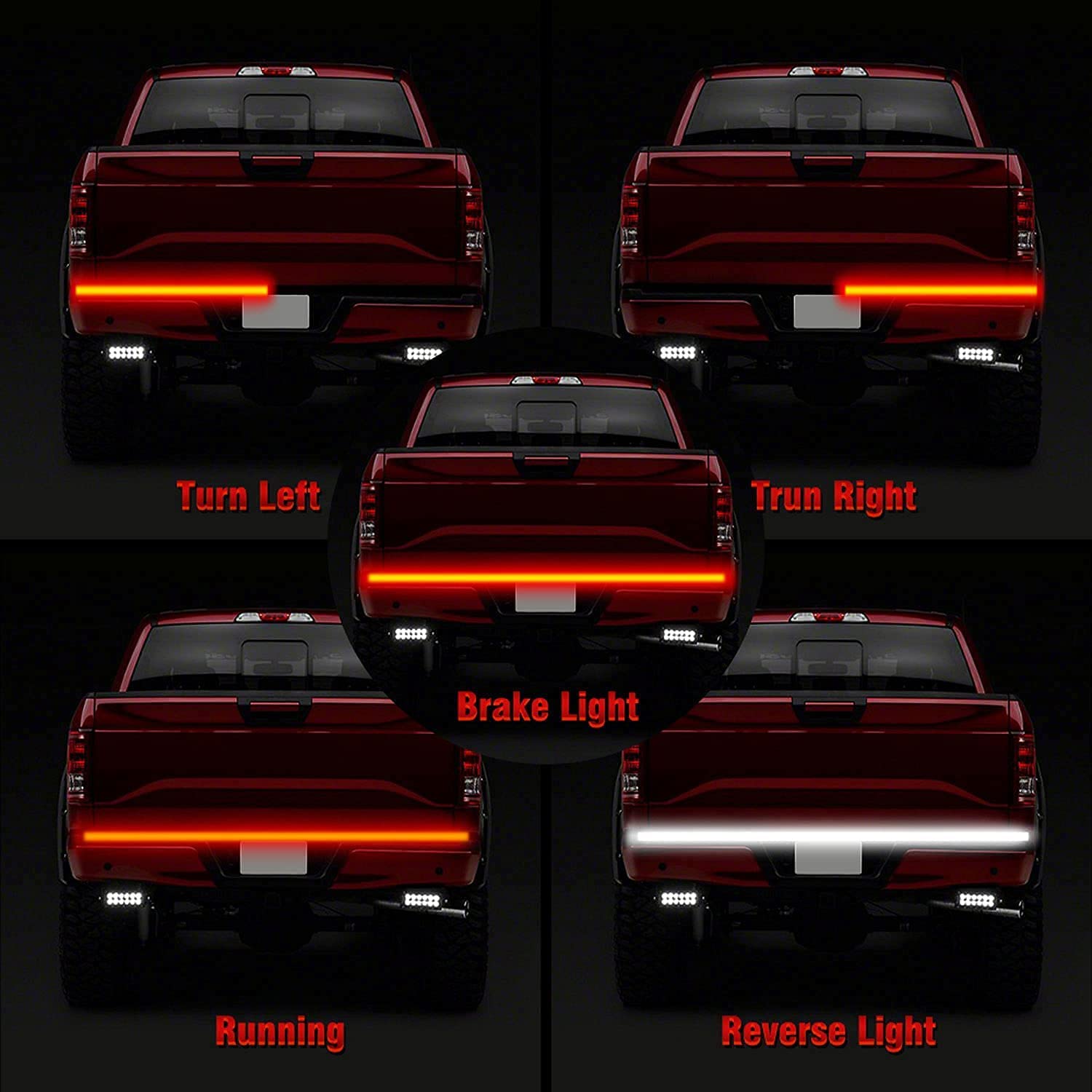

- A - Ground
- B - Running Lamp (Scanning from middle to two side and is red)
- C -Left Turn Signal (scanning from middle to left) & Brake Light)
- D - Right Turn Signal (scanning from middle to right) & Brake Light)
- R- Reverse Light -connect the white wire(the light color is white and Keep static white)
Note:
1, Please read the instruction paper thoroughly before any operation and installation on the light strip. Professional installation is highly recommended.
2, Please clean the area of the vehicle where you install it firstly, and then use the heater to make it more sticky. The light strip also comes with spare mounting screws set to secure it.
60" RED & WHITE TAILGATE LIGHT STRIP
- Plug and Play Connectivity with Flat 4 Pin Trailer Connection Harness

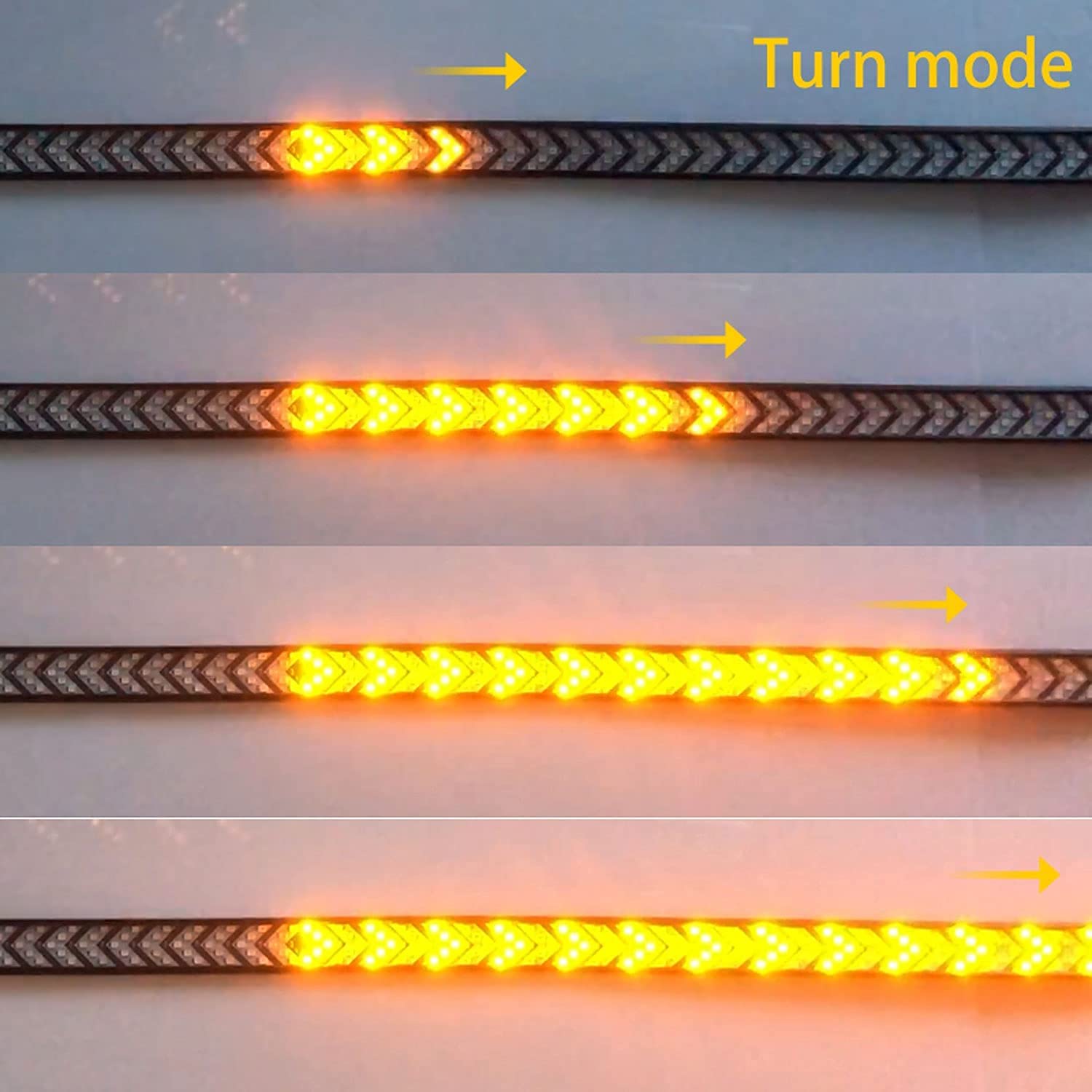

- Arrow steering effect & scanning functions
- Red & amber color is available
- 3M Tape and Screws Provide Trouble Free Installation

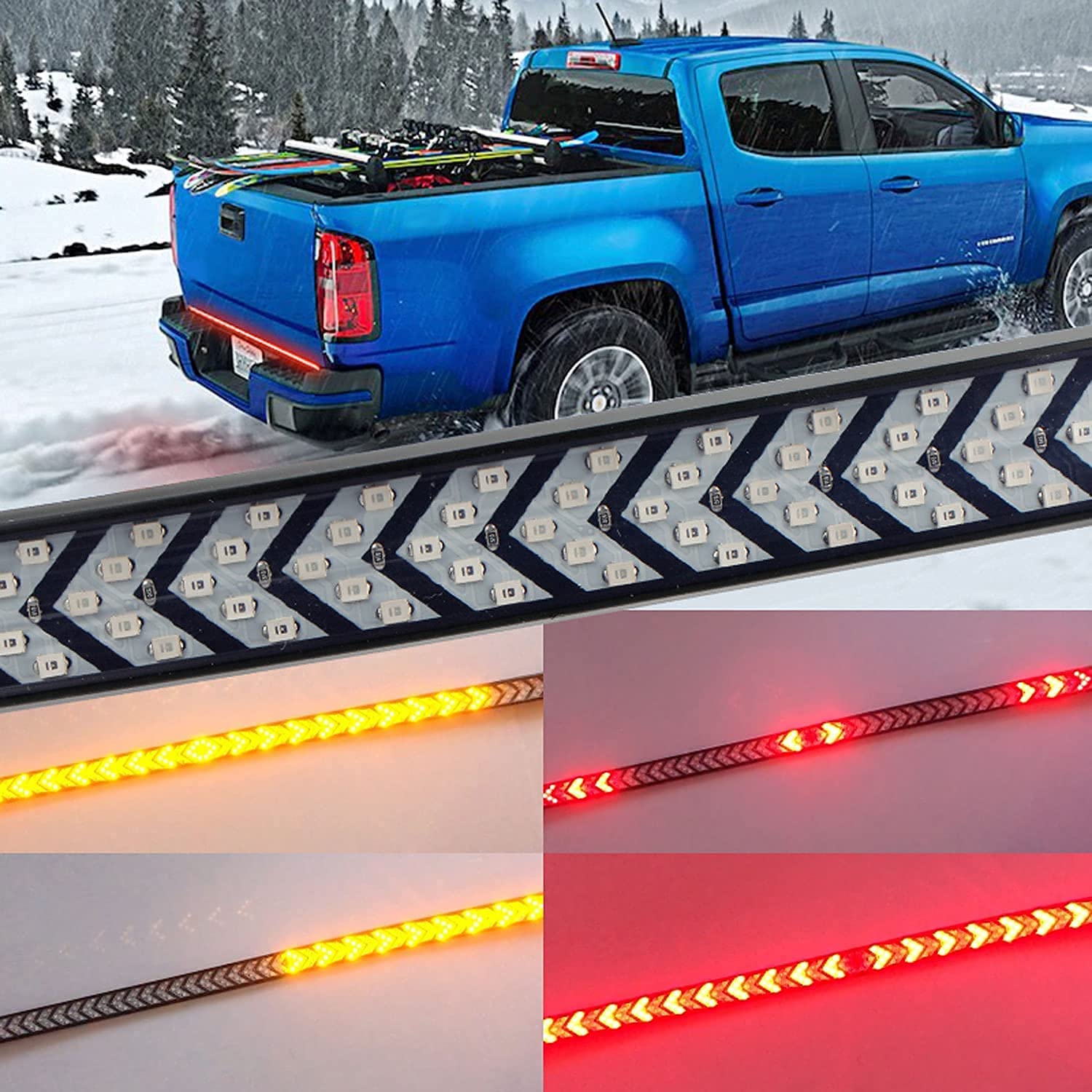

- Quintuple-Row LED and Waterproof IP67
- This 60 inches tailgate light is universal fitted for most Truck Pickup Trailers SUV RV VAN etc.
- Drive more safely with this powerful LED Tailgate light !
- You can mount them along the tailgate as left/right turn signal lights, brake light, running light.
